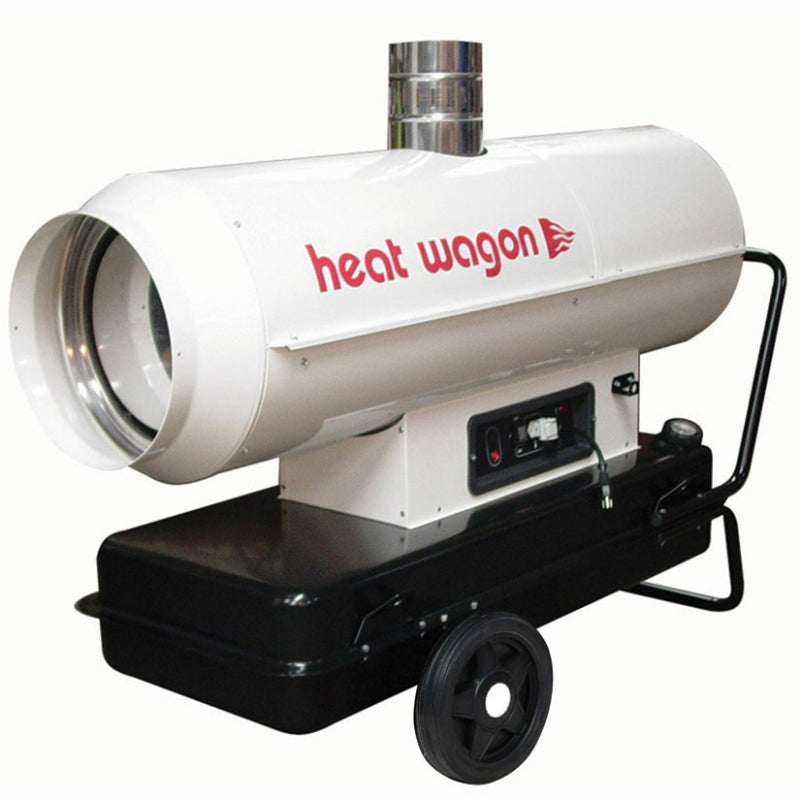

Heat Wagon HVF210 Indirect-Fired Diesel Heater 205,000 BTU
- Description
- Specifications
- Resources
- Why Buy From Us
- Shipping
The HVF210 High-Pressure Diesel Heater is built for maximum efficiency and long run times, making it ideal for job sites, outdoor events, and industrial applications. With a powerful 205,000 BTU output, this CSA-approved heater delivers reliable warmth even in demanding environments.
Key Features:
- Multi-Fuel Compatibility – Runs on #1 and #2 diesel, kerosene, JP-8, or Jet A fuel.
- High-Efficiency Heating – The Four-Loop Exhaust Gas System™ maximizes heat output while reducing fuel waste.
- Extended Run Time – The extra-large 27.7-gallon fuel tank provides up to 19 hours of operation per fill.
- Low Power Consumption – Runs on a standard 15-amp circuit (120V) for easy setup.
- 160°F Output Temperature – Quickly heats large spaces with 1,530 CFM airflow.
- Optional Thermostat – Allows for on/off temperature control for added convenience.
- One-Person Maneuverability – Designed for easy transport and positioning.
- Ductable Up to 50 Feet – Distribute heat where it's needed most.
- Preheated fuel filter.
In an indirect-fired heater, the flame and exhaust are fully contained within a burn chamber, keeping combustion byproducts separate from the heated air. Exhaust gases are safely vented through a flue, while clean, dry, fume-free heat is distributed into the space. This makes indirect heaters a reliable solution for temporary heating at construction sites, outdoor events, and other enclosed spaces. Typically installed outdoors, these heaters draw in fresh air, heat it as it passes over the burn chamber, and then distribute it via ducting. If used indoors, the flue must be properly vented outdoors to ensure safe operation.
The heater must be connected to a generator if run remotely. Inverters cannot withstand the initial Amp draw required to start the machine.
| Type | Specifications |
|---|---|
| Heat Input | 205,000 BTU/Hr |
| Heat Output | 174,900 BTU/Hr |
| Fuel | #1, #2 Fuel Oil |
| Tank Capacity | 27.7 Gallons |
| Fuel Consumption | 1.48 GPH |
| Run Time Per Full Tank | 19 Hours |
| Electrical | 120 Volts 9 Amps |
| Weight (w/o fuel) | 180 lbs. |
| Dimensions | 57" L x 23" W x 38" H |
