Misting System with Stainless Steel Tubing - Smart Phone Compatible

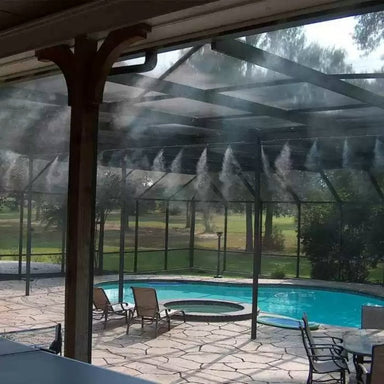

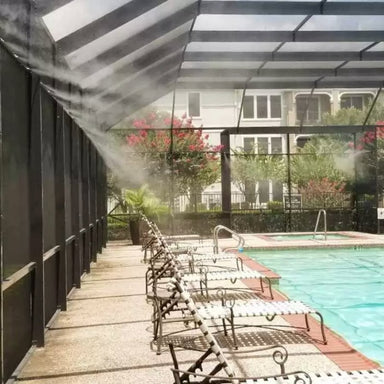

Great for residential patios and restaurants where aesthetics are important, the stainless steel lines blend with all types of decor. In addition to its good looks, a stainless steel misting line prevents pressure loss throughout the system to produce the finest of mist. Stainless steel tubing will not lag after installation and lasts a lifetime. If you are looking for years of trouble-free operation with supreme mist quality and ultimate looks, this system is for you!

High-Pressure Misting System aids flash evaporation of mist, which then turns into cool refreshing air while instantly creating a temperature drop. Ultrafine Fog is produced using Max 1500psi pump that evaporates almost instantly - leaving absolutely no wetness or moisture on the floor or eating tables. Anti-Drip Stainless Steel Mist Nozzles will ensure an instant on/off effect without dripping on people. Smart safety features automatically turn the pump off if the water source is turned off and prevents damage to the pump. Built-in electronic water on/off valve means you will never have to walk up to your water source each time you want to turn your system on/off. Extra water not used by the mist nozzles gets automatically redirected into the inlet water source. Adjustable Push lock fittings do not require any tools to install and are reusable. Compatible with various timers and controls.

Our max 1500psi Stainless Steel Misting system can be used in many applications, including many commercial environments, manufacturing applications, and even agricultural settings. A High-Pressure Misting kit can be customized to your specifications, allowing you to instantly cool and increase the usability of your outdoor space during hot summer months. Larger systems with high-flow pumps are also available. Contact us for a custom quote.

You can now control the misting pump with an add-on Smart phone controller. (Requires strong WiFi signal at the pump). Compatible with misting pump with up to 40 Misting Nozzles capacity.

Maximum Nozzles:

40 Misting Nozzles

Best High Pressure Misting System for DIY Misting System.

High Pressure Misting system is the Best Misting System
1500 PSI Misting System with 1/4in Stainless Steel Tubing (2ft sections)
- Require larger sections from 3ft and/or 4ft, please contact us to customize the order(s)
22ft high-pressure 1/4in tubing (optional for extra)
6ft Garden Hose Adaptor Feed Line 3/8in OD
DIY Misting System
Up to 40 Misting Nozzles capacity
Stainless Steel Misting Nozzles
Nickel-Plated High-Pressure Fittings
WiFi - Enabled with Smartphone Controller (Optional)

Base Kit Components:

1x 1500 PSI Standard Misting Pump
10x Misting Tees
10x Stainless Steel Misting Nozzles - 0.006" Orifice 10/24 thread
9x 2ft Sections, Stainless Steel Tubing - Grooved for easy connect
22ft High-Pressure 1/4in Tubing Roll (feed line from the pump to connect to stainless steel)
6ft Garden Hose Adaptor Feed Line 3/8in OD
10x Stainless Steel Clamps
High-Pressure Accessory Kit

Stainless Steel Tubing Vs Nylon Tubing:

Life Time Warranty
Rigid - Does not lag or expand over the years
Longer life - Less likely to leak
Higher Pressure Rating
Larger Inner Diameter so Water flows better and system maintains better overall pressure over longer distances.
Looks good on any outdoor décor. Matches Stainless Steel outdoor Appliances.
Reusable

Resources:

Pump Manual

Specifications

Industry Leading max 1500 PSI (0.15 / 0.30 GPM) Mist Pump specifically manufactured for Misting application
Built-in Solenoid Valve
Built-in Low Water Cut off Switch
5 Micron Commercial Water Filter
Durable Enclosure - Outdoor Enclosure
110v AC (Available in 220v on request)
Max System expansion up to 160 Nozzles (Requires larger pump)
Stainless Steel Orifice Ultrafine Misting Nozzles
Nickel Plated Brass High-Pressure Push Lock Fittings
Rigid Stainless Steel Tubing for Push Lock fittings
Lifetime warranty on Stainless Steel Tubing
